Yiwu Weihao Machinery Equipment Company professional evaporator and concentrator manufacturer specializing in herbal extraction equipment, we design and produce high-performance Herbal Extraction Vacuum Concentrators. This equipment integrates advanced vacuum concentration technology and gentle low-temperature heating design, solving the pain points of heat-sensitive active ingredient degradation, low efficiency, and solvent waste in traditional herbal extraction concentration processes, providing a high-quality, efficient, and environmentally friendly solution for herbal extract concentration projects.

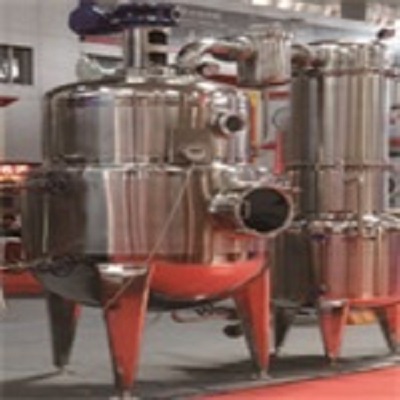

Our Herbal Extraction Vacuum Concentrator is a specialized high-efficiency equipment designed for the concentration of herbal extracts, plant extracts, and natural active ingredients. Integrating advanced vacuum concentration technology and gentle heating design, it is tailored to solve the core pain points of herbal extraction concentration—such as easy degradation of heat-sensitive active ingredients, low concentration efficiency, and loss of effective components. Widely used in pharmaceutical, food, health product, and cosmetic industries, it realizes efficient, gentle, and clean concentration of herbal extracts, maximizing the retention of active ingredients (such as flavonoids, saponins, and essential oils), helping enterprises improve product quality and production efficiency.
Feed Preparation: The crude herbal extract (after extraction and filtration) is pre-processed to remove suspended impurities and large particles, adjusted to an appropriate temperature and viscosity, ensuring smooth feeding and avoiding blockage during the concentration process.
Vacuum Environment Establishment: The concentration chamber is evacuated to form a negative pressure environment (-0.06 to -0.095 MPa), which lowers the boiling point of the herbal extract, enabling low-temperature evaporation and concentration without damaging heat-sensitive active ingredients.
Gentle Heating & Evaporation: The pre-treated herbal extract is evenly distributed in the heating chamber, heated by a jacketed heating system with precise temperature control. Under vacuum conditions, the solvent (mainly water or ethanol) in the extract boils and evaporates at a low temperature (40–65°C), forming secondary steam.
Vapor Condensation & Solvent Recovery: The secondary steam generated during evaporation enters the condenser, where it is cooled and condensed into liquid solvent (pure water or ethanol), which can be recycled for reuse in the herbal extraction process, reducing resource waste and production costs.
Concentration & Discharge: The herbal extract is continuously concentrated in the vacuum environment until the required concentration is reached, then continuously discharged. The whole process is closed-loop, avoiding contamination of the extract and ensuring product purity.
Gentle Low-Temperature Concentration: Operating temperature of 40–65°C under vacuum conditions, effectively avoiding thermal degradation of heat-sensitive active ingredients in herbal extracts, maximizing the retention of flavonoids, saponins, essential oils, and other effective components, ensuring high product quality.
High Concentration Efficiency: Advanced vacuum system and efficient heating structure accelerate solvent evaporation, shortening the concentration cycle by 30–50% compared to traditional concentration equipment, improving production efficiency.
Solvent Recovery Function: Equipped with a high-efficiency condenser and solvent recovery system, which can recover 95%+ of the solvent (water, ethanol, etc.) used in extraction, reducing resource waste and production costs, and complying with environmental protection requirements.
Hygienic & Pollution-Free: All product contact parts are made of food-grade and pharmaceutical-grade 316L stainless steel, fully compliant with FDA, GMP, and ISO 22000 standards. The closed-loop design avoids contact between the extract and air, preventing oxidation and contamination.
Wide Adaptability: Suitable for various herbal extracts, including traditional Chinese medicine extracts, plant essential oil concentrates, fruit and vegetable extracts, and natural health product extracts, capable of handling extracts with viscosity up to 8,000 cP.
Intelligent & Easy Operation: PLC + HMI automatic control system, real-time monitoring of vacuum degree, temperature, concentration, and solvent recovery rate; automatic adjustment of heating power and vacuum pressure, realizing unmanned operation and easy maintenance. Equipped with CIP (Clean-in-Place) system for convenient cleaning.
Material | SUS304/316L Stainless Steel |
Material Adaptability | Herbal Extracts, Plant Extracts |
Evaporation Capacity | 50–5000 L/h (Customizable) |
Evaporation Temperature | Low-Temperature |
Heating Method | Jacketed Heating / Plate Heating (Optional) |
Solvent Recovery Rate | ≥ 95% |
Widely used in industries requiring herbal and plant extract concentration, including: Pharmaceutical Industry (traditional Chinese medicine extract concentration, herbal API concentration, natural active ingredient purification); Food Industry (plant extract concentration, fruit and vegetable juice concentrate, natural food additive concentration); Health Product Industry (herbal health product extract concentration, dietary supplement concentration); Cosmetic Industry (plant essential oil concentration, natural cosmetic ingredient extraction and concentration); Other Industries (biological extract concentration, natural pigment concentration).
We provide one-stop solutions for your Herbal Extraction Vacuum Concentrator needs: custom design based on your herbal extract properties, target concentration, production capacity, and solvent recovery requirements; professional manufacturing with strict quality control for vacuum system, heating system, and solvent recovery system; on-site installation, commissioning, and operator training; lifelong after-sales maintenance, spare parts supply, and technical support. Free technical consultation, herbal extract sample test, and customized quotation are available—contact us to get your tailored herbal extraction concentration solution.
