Forced Circulation Evaporator

  • Chemical Industrial Vacuum concentration Forced Circulation Evaporator

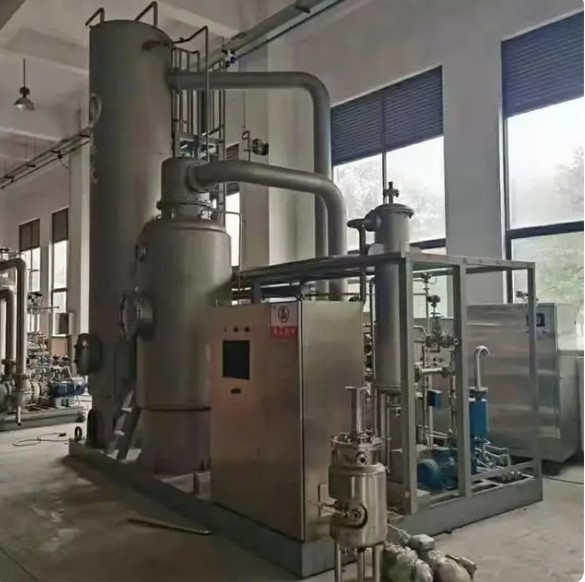

Chemical Industrial Vacuum concentration Forced Circulation Evaporator

                                       Chemical Industrial Vacuum concentration Forced Circulation Evaporator


1. Technical data :

Equipment name: forced circulation evaporator

Equipment material: stainless steel 304/316

Input solution: solid content solution

Input concentration: 10-50%

Output concentration: 60-90%

Input volume: customized

Input temperature: 20-30℃

Evaporation temperature: 45-70℃

Evaporation capacity: 100L-100000L/hr

Working effect: single/double/triple effect

Heating method: steam heating

Cooling method: cooling tower water

Steam consumption: as per capacity

Power: 1-100kw

Voltage: 380V/60Hz/3P or as client's request

Dimension: as capacity

Weight: 1000-2000kgs




2. Component:

Each effect heating chamber, evaporation and crystallization chamber, condenser, circulating pump, vacuum and drainage system, gas-liquid separation chamber, secondary steam flash tank, salt separator, operating platform, testing instrument and electrical instrument control cabinet and valve and pipeline system.
