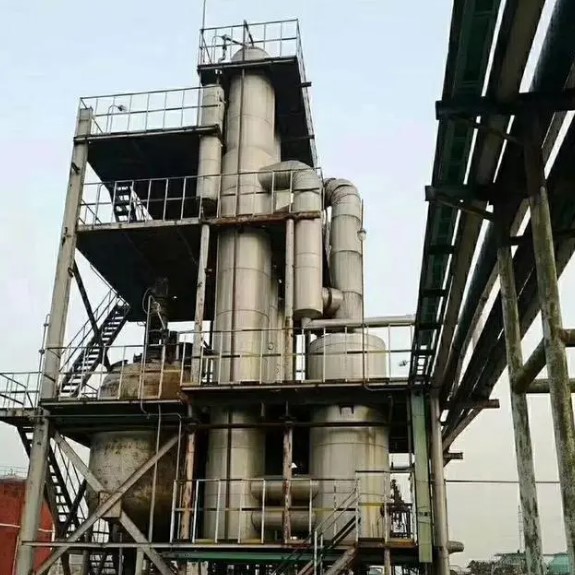

1ton to 10ton per hour Sodium sulfate water evaporation Forced circulation evaorator

                                   1ton to 10ton per hour Sodium sulfate water evaporation Forced circulation evaorator

1. Introduction of forced circulation evaporator :

Forced circulation evaporator is a kind of evaporation equipment. The circulation of the solution in the equipment mainly depends on the forced flow generated by the external force. The cycle speed can generally reach 1.5-3.5 m/s. Large heat transfer efficiency and production capacity. The raw material liquid is driven from bottom to bottom by the circulating pump and flows upward along the tube of the heating chamber. Steam and liquid foam mixture into the evaporation chamber separated, the vapor from the upper part of the discharge, fluid blocked fall, through the conical bottom by the circulation pump suction, and then into the heating pipe, continue the cycle.

2. Feature of forced circulation evaporator:

1) The circulation of the solution in the equipment mainly relies on the forced flow generated by the external power, and the circulation speed can generally reach 1.0-3.5 m/s, and the heat transfer efficiency and production capacity are large.

2) The raw material liquid is driven from bottom to bottom by the circulating pump and flows upward along the tube of the heating chamber.

3) The material does not evaporate in the heat exchanger, flash in the separator, the vapor is discharged from the upper part of the separator, the fluid is blocked and falls, the conical bottom is inhaled by the circulation pump, and then enters the heating tube to continue the cycle.

3. Technical data:
