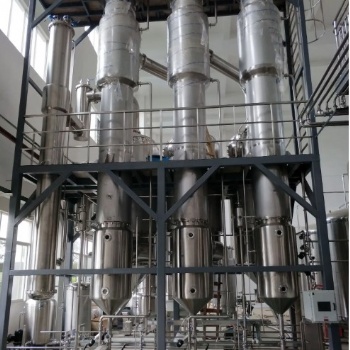

Forced Circulation Evaporator For Sodium Chloride Wastewater Treatment

Equipment Name

Forced circulation evaporator

Forced Circulation Evaporator For Sodium Chloride Wastewater Treatment

Application

 Chemical, food, pharmaceutical, environmental engineering, waste liquid evaporation and other industries .

Working Principle

The circulation of the solution in the equipment mainly depends on the forced flow generated by the applied power. The cycle speed is generally up to 1.5-3.5 m/s. Heat transfer efficiency and production capacity are large. The raw material liquid is driven from the bottom up by the circulation pump and flows upward in the tube of the heating chamber. After the steam and liquid mixture enters the evaporation chamber, the vapor is separated from the upper part, the fluid is blocked, and is sucked by the circulating pump through the conical bottom, and then enters the heating tube to continue the circulation.

Equipment Component

Each effect evaporator, each effect separator, condenser, circulation pump, efficiency pump, vacuum and drainage system, operating platform, electrical instrument control cabinet and valves, pipelines and other systems.
