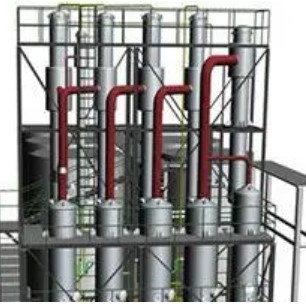

Falling Film Evaporator

  • Falling film evaporator for concentration juice milk water solution concentrate

Falling film evaporator for concentration juice milk water solution concentrate

                                           Falling film evaporator for concentration juice milk water solution concentrate


1. Technical data :

Equipment name: falling film evaporator

Equipment material: stainless steel 304/316

Input solution: juice/milk/water solution

Input concentration: 10-50%

Output concentration: 60-80%

Input volume: customized

Input temperature: 20-30℃

Evaporation temperature: 45-70℃

Evaporation capacity: 50L-50000L/hr

Working effect: single/double/triple effect

Heating method: steam heating

Cooling method: cooling tower water

Steam consumption: as per capacity

Power: 1-100kw

Voltage: 380V/60Hz/3P or as client's request

Dimension: as capacity

Weight: 1000-2000kgs

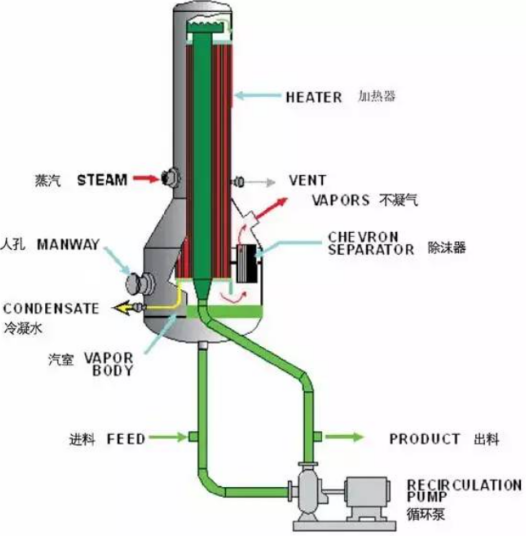

2. Component:

Heater, Separator, Preheater, Condenser, Condensate tank, Pumps, Valves, Control system, and other parts.
