Falling Film Evaporator

  • Oil Distillation Water Evaporation Equipment Single Effect Falling Film Evaporator
  • Oil Distillation Water Evaporation Equipment Single Effect Falling Film Evaporator

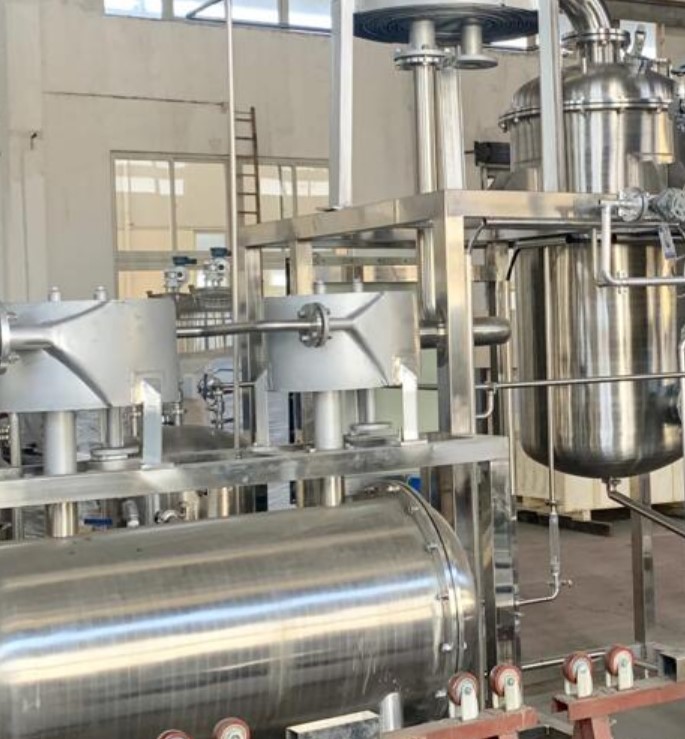

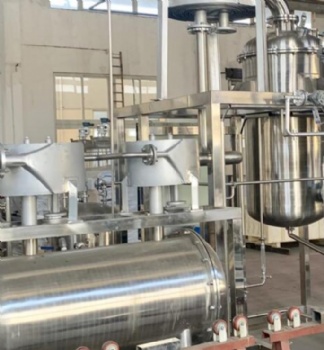

Oil Distillation Water Evaporation Equipment Single Effect Falling Film Evaporator Oil Distillation Water Evaporation Equipment Single Effect Falling Film Evaporator

Oil Distillation Water Evaporation Equipment Single Effect Falling Film Evaporator




Oil Distillation Water Evaporation Equipment Single Effect Falling Film Evaporator


Model


100L/200L/300L/500L/800L/1000L/2000L, per hr


Application


Water evaporation, ethanol recovery, solvent concentration.



Equipment Component

Falling film evaporator mainly consists of evaporator (heat exchanger), separator, preheater, condenser, condensate tank, circulation pump and other components. Main role as following:
1. Evaporator (heat exchanger): heating and evaporation of liquid materials.
2. Separator: the secondary steam generated after heating is separated from the concentrated liquid gas.
3. Preheater: preheating the liquid material entering the steam; the secondary steam is cooled to facilitate recycling thereof.
4. Condenser:  the secondary steam is condensed to facilitate recycling.
5. Condensate tank:  through the connection with the pump at the exit, can automatically discharge the condensate in the tank.
