Falling Film Evaporator

  • Low Temperature Vacuum Concentration Multiple Effect Falling Film Evaporator

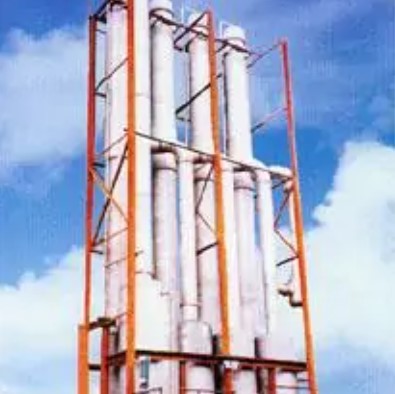

Low Temperature Vacuum Concentration Multiple Effect Falling Film Evaporator

                                   Low Temperature Vacuum Concentration Multiple Effect Falling Film Evaporator


1. Introduction:

Falling film evaporator is divided into single effect, double effect, three effect, four effect, five effect, multi-effect evaporator, suitable for milk, glucose, starch, xylose, pharmaceutical, chemical, biological engineering, environmental protection engineering, waste liquid recovery and other industries for low temperature concentration. And can be widely used in the above industries waste liquid treatment. Especially suitable for heat-sensitive materials, the equipment is continuously operated under vacuum and low temperature conditions, with high evaporation capacity, energy saving, low operating costs, and can ensure that the material is invariable during evaporation.


2. Advantage:

Falling film evaporator has the advantages of high heat transfer coefficient, small pressure drop, small heat transfer temperature difference loss, no degradation of thermal sensitive materials, not easy to scale, small internal liquid lag and so on.


3. System Component:

Each effect evaporator, each effect separator, condenser, hot pressure pump, vacuum and drainage system, each effect material liquid, conveying pump, operating platform, electrical instrument control cabinet and valves, pipelines and other systems.


4. Technical Data:


Equipment namemultiple effect falling film evaporator
MaterialSS316/304
Working effect3-5 effect
Evaporation capacity1000-50000L/hr
Power10-100kw
Voltage380V/220V/60Hz/3P
Evaporation typevacuum low temperature evaporation
Input solutionlow concentration solution
Heating methodsteam heating
Cooling methodcooling tower water
